SPECIFICATIONS

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display Type: Digital Only

Supply Voltage: DC 5-120V

Certification: NONE

Model Number: A52D1AA800567

Dimensions: Product Dimensions: 48mm*29mm*23mm

Operating Temperature: -4°F - 140°F (-20°C - 60°C)

Accuracy Class: + - 1%

Features:

Through-hole design: No wiring difficulty. Measure positive or negative current. No current direction limitation

Electrically isolated from high power which eliminates risk to delicate monitoring equipment and also minimizes safety concerns

Display or (+ -)Current. : 5V-120V. Current : 0-100A

Large wire capability: Diameter of the hole through is 3/4 inch(19 mm)

Loop through multiple times to strengthen signal. For example, if your current signal is only 0.2 Amps, you could loop the wire through the 10 times and the signal would by 10X for STRONGER and would appear as 2.0 Amps

&nbsp ;

&nbsp ;

Description:

effect current meter reads current by detecting the magnetic field around the wire, there is no electrical contact which eliminate risk to delicate monitoring equipment and also minimizes safety concerns. The doesn'for t get hot like the current shunt resistor which can have thermal temperature heat dissipation issues.

&nbsp ;

Three display modes:

alternately display Amps and

2. only display Amps

3. only display

&nbsp ;

&nbsp ;

Specifications:

Measurement : + -100A

Accuracy: + - 1%

Resolution: 0.3A

Working current: 7-15mA

Power supply: for Dc 5-120V

Product Dimensions: 48mm*29mm*23mm

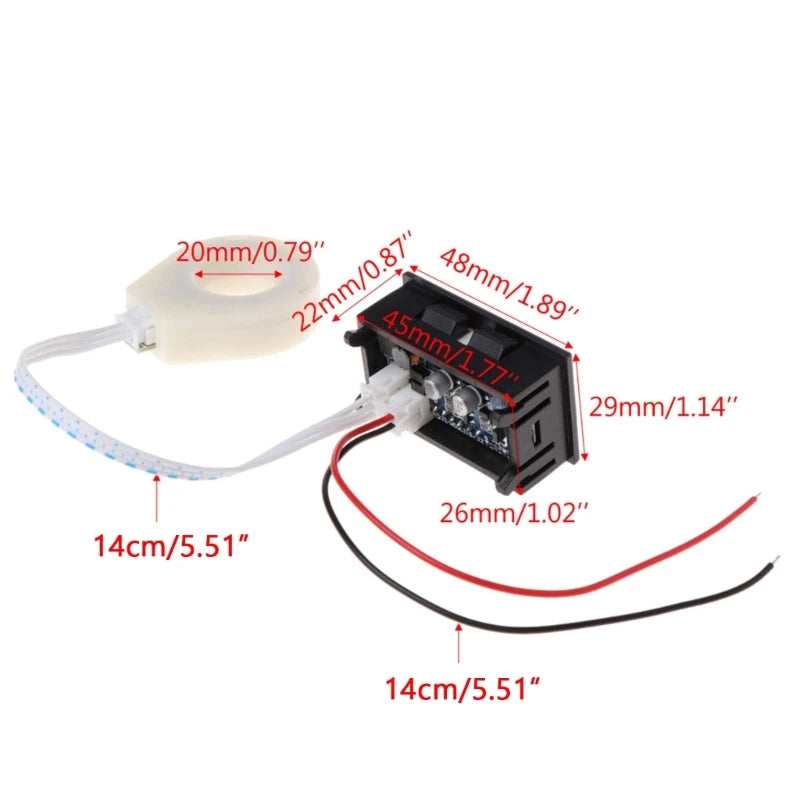

Mounting hole: 45.5mm*25.5mm

hole diameter: 19mm

Operating temperature: -4°F - 140°F (-20°C - 60°C)

&nbsp ;

As the resolution is 0.3A, the current reading might be flickering with 0.3A difference. For example, if the current is 1.7A, you might see a 1.7A and 2.0A alternatively. This is normal.

If your signal is too weak or you are not getting the resolution you want, you can coil the wire through the current as many times as you want to double, triple, or quadruple the sensitivity or resolution.

For example, if your current signal is only 0.2 Amps, you could loop the wire through the 10 times and the signal would by 10X for STRONGER and would appear as 2.0 Amps.

&nbsp ;

&nbsp ;

Note:

We have more detailed manual, if you need an electronic user manual, please contact .

&nbsp ;

&nbsp ;

Package included:

1x Digital Voltmete Ammeter

1x Effect
